Week 4 (10/03/2022)
Natalia Mendoza
20218127
✽
The course was conducted on creating 3D solid platonics on Autocad.
Modelling a octahedron in Autocad 3D using commands polygon,ucs,classicalarray,align,rotate.
Modelling a dodecahedron in Autocad 3D using commands polygon,ucs,classicalarray,align,rotate.
Modelling a icosahedron in Autocad 3D using commands polygon,ucs,classicalarray,align,rotate.

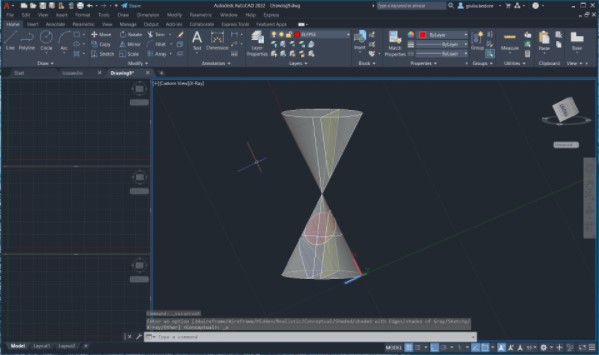

Modelling a cone in Autocad 3D with sections.
This week's work:
Modelling 4 platonic solids in Autocad.
Modelling a octahedron.
Modelling a dodecahedron.
Modelling a icosahedron.
Modelling a cone.
